Maretron Micro Double-Ended Cordset - 3M [CM-CG1-CF-03.0]
Maretron Micro Double-Ended Cordset - 3M [CM-CG1-CF-03.0]
Regular price
$33.20 USD
Regular price
Sale price
$33.20 USD
Unit price
/
per

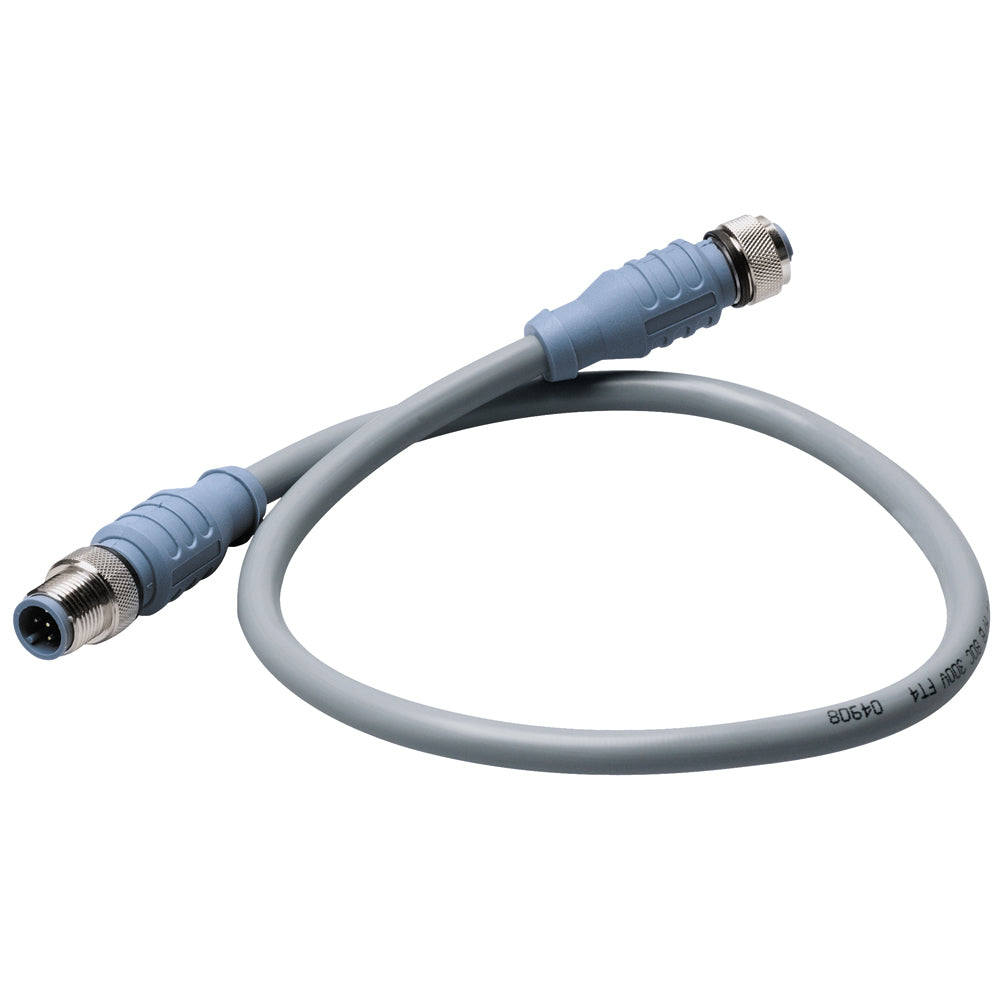

Micro Double-Ended Cordset - 3M
Mechanical
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical
- Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
- Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
- Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V - (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4 - NMEA: NMEA 2000 Approved
Specifications:
- Cable Length (Feet): 10'
- Data Interface: NMEA 2000
- Box Dimensions: 1"H x 6"W x 8"L WT: 0.55 lbs
- UPC: 873804001531
