Blue Sea Systems

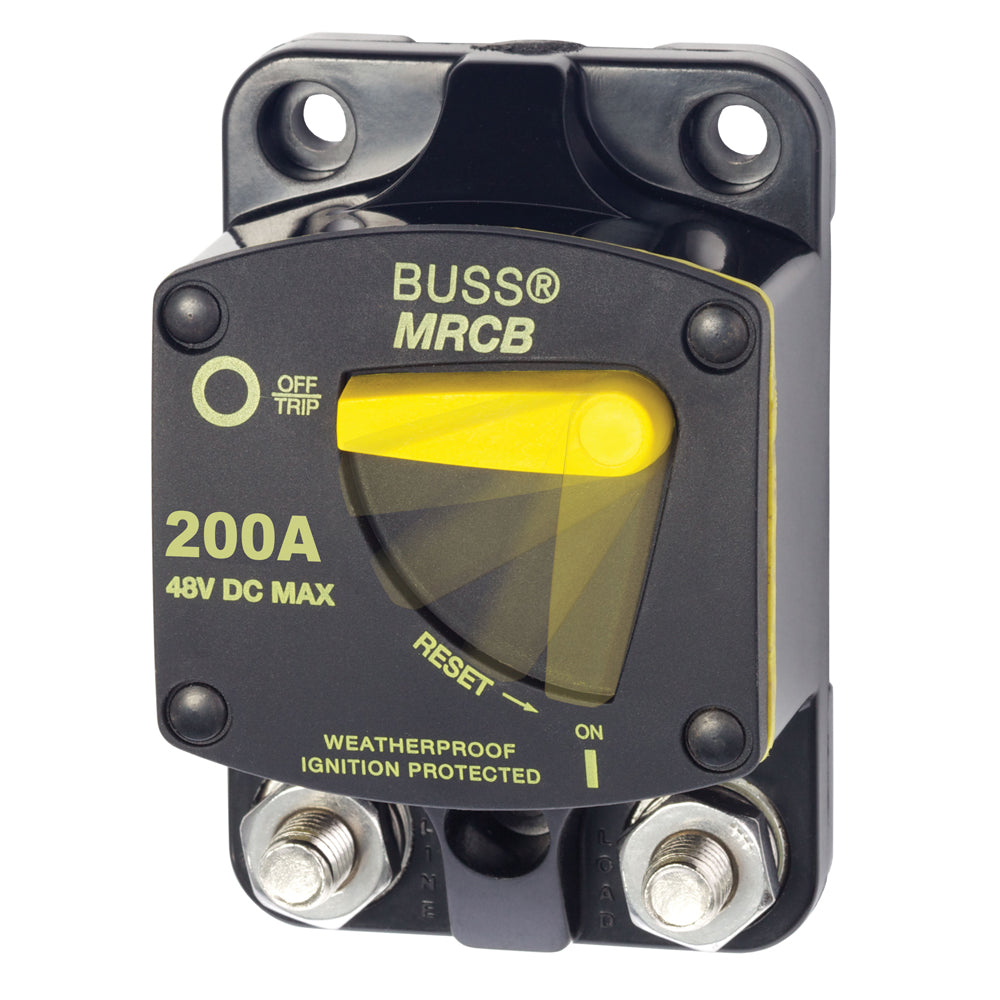

Blue Sea 7149 200 Amp Circuit Breaker - Surface Mount [7149]

Blue Sea 7149 200 Amp Circuit Breaker - Surface Mount [7149]

Regular price $100.99 USD
Regular price $135.61 USD Sale price $100.99 USD
Sale Sold out
Shipping calculated at checkout.

187-Series Circuit Breaker - Surface Mount 200A

  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accecpt heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements


* Do not use as a switch where high inrush currents are expected.

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 200a
  • Box Dimensions: 2"H x 5"W x 9"L WT: 0.6 lbs
  • UPC: 632085171490
